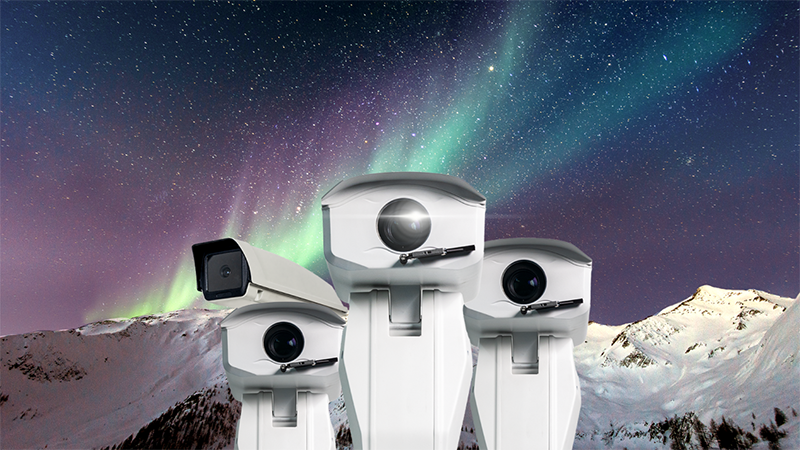

Aurora Full-Color Night Vision PTZ Camera

Product Overview

The Aurora Full-Color Night Vision PTZ Camera is a professional industrial-grade surveillance solution designed for demanding environments. With advanced 1/1.8" CMOS sensor and 20x optical zoom, it delivers exceptional image quality in all lighting conditions.

2MP Full HD Resolution
Ultra-low Light Sensitivity (0.0001 Lux)
20x Optical Zoom
360° Continuous Rotation
IP66 Weatherproof Rating
Wide Temperature Range (-40°C to 60°C)

Technical Specifications

Basic Parameters

Image Sensor 1/1.8" Starlight CMOS

Minimum Illumination Color 0.0001 Lux@F1.6

Maximum Resolution 2 Megapixel

Video Frame Rate 10fps/30fps Real-time

Video Compression H.265/H.264

White Balance Auto

Gain Control Auto

Wide Dynamic Range 120dB

Signal-to-Noise Ratio > 52dBA

3D Digital Noise Reduction Supported

HDR Supported

Exposure Mode Auto

Lens Parameters

Focal Length f=6.7~125mm, 20x Optical Zoom

Aperture F1.6-F4

Field of View (Horizontal) 59.6° WIDE; 3.5° TELE

Field of View (Vertical) 35.7° WIDE; 2.0° TELE

Field of View (Diagonal) 66.6° WIDE; 4.0° TELE

Day/Night Mode Electric IR-CUT Filter

PTZ Characteristics

Horizontal & Vertical Range Horizontal 360° Continuous, Vertical 125° Tilt

Pan Speed 0.2°~80°/second

Tilt Speed 0.2°~40°/second

Rotation Precision ±0.025°

Preset Points 200 Presets

Guard Function Preset/Pattern Scan/Cruise Scan/Auto Scan/Vertical Scan/Random Scan/Frame Scan/Panoramic Scan

Scheduled Tasks Supported

Network

Network Protocol IPv4/IPv6, HTTP, 802.1x, NTP, RTSP, RTCP, RTP, TCP/IP, UDP

Access Protocol ONVIF/GB28181

Browser Support IE8+, Chrome 31-44, Firefox 30-51, Safari 8.0-11

Simultaneous Preview Up to 20 Channels

Interfaces

Network Interface RJ45 Port, 10M/100M Adaptive

Data Control Signal UART/RS485

Video Signal HDMI/Ethernet

SD Card Slot MicroSD Card Support (Max 128GB)

General Specifications

Power Supply DC24V, 3.0A

Power Consumption 25W

Protection Rating IP66

Operating Temperature & Humidity -40°C ~ 60°C, < 95% (No Condensation)

Dimensions L329.6mm × W196.8mm × H436.2mm

Weight Approx. 7kg

Key Features

🌙

Full-Color Night Vision

Ultra-low light sensitivity of 0.0001 Lux enables full-color video even in extremely dark conditions

🔍

20x Optical Zoom

Powerful zoom capability with focal length range of 6.7~125mm for detailed long-range monitoring

🔄

360° Coverage

Continuous horizontal rotation with 125° vertical tilt provides comprehensive area coverage

🎯

High Precision

Rotation precision of ±0.025° and 200 preset points for accurate positioning

🌦️

All-Weather Design

IP66 protection rating and wide temperature range (-40°C to 60°C) for harsh environments

📹

Advanced Video

H.265/H.264 compression, 120dB WDR, HDR, and 3D noise reduction for optimal image quality

💾

Local Storage

Built-in MicroSD card slot supporting up to 128GB for reliable local recording

🌐

Universal Compatibility

ONVIF/GB28181 protocols and wide browser support for seamless integration

Applications

Industrial Monitoring

Perfect for factories, power plants, and industrial facilities requiring 24/7 surveillance

Traffic Surveillance

Ideal for highways, intersections, and parking areas with wide coverage needs

Public Safety

Suitable for city squares, parks, and public spaces requiring comprehensive monitoring

Perimeter Protection

Excellent for borders, campuses, and large compound security
